Woolworths – Claremont Plaza (Stage 1, Tasmania)
Roof Restoration | Rust Conversion | Galvanic Corrosion Protection | Waterproofing | Thermal Insulation
Project Overview

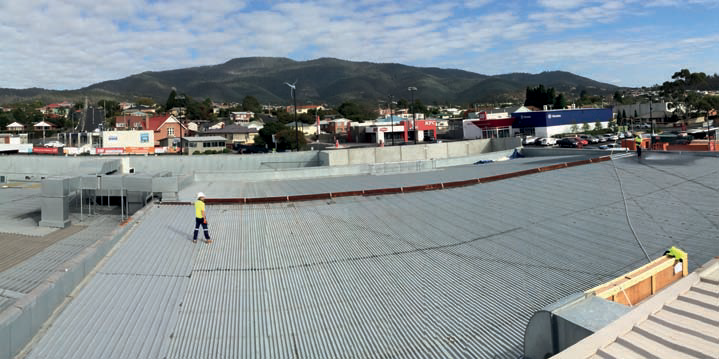

The roof of Claremont Plaza Woolworths in Tasmania was suffering from extensive galvanic corrosion, surface rust, and water ingress due to incompatible metals, including zincalume ridge caps on galvanised roofing. These issues were progressively weakening the roof structure, threatening leaks and long-term deterioration.
Thermoshield was engaged to implement a multi-stage roof restoration process, addressing corrosion at its source, re-sealing structural components, and finishing with a high-performance ceramic membrane. This solution provided thermal protection, waterproofing, and corrosion resistance — extending the lifespan of the roof and safeguarding the infrastructure.
Key Benefits Delivered
Permanent Rust Conversion
- Rusted steel components were chemically converted into stable metal phosphates, halting active corrosion.
- This process was irreversible, transforming vulnerable surfaces into sealed, non-reactive structures.
Galvanic Corrosion Protection
- Incompatible materials (zincalume ridge caps on galvanised sheeting) were electrically insulated using Thermoshield’s non-conductive ceramic coating, preventing galvanic reactions.
- Thermoshield acts as both an electronic and moisture insulator, breaking the corrosion cycle.
Comprehensive Waterproofing
- All flashing, lap joints, screw heads, and corroded areas were treated with a high-microfibre membrane system, paintable silicone, and expandable foam.
- Final sealing with Thermoshield ensured a non-permeable, flexible membrane across the roof.
Thermal Insulation
- Thermoshield’s ceramic coating, made from millions of hollow ceramic beads, formed a 2mm reflective membrane that significantly reduced heat gain.
- Improved internal temperature control while reducing cooling load and energy costs.
Cost-Effective Asset Preservation
- Addressed roof damage without full structural replacement.
- Delivered a long-term protective system suited for retail infrastructure with minimal operational disruption.
Scope of Works
- Stage 1: Inspection & Cleaning
- Pressure washing at 3,600 psi
- Identification of rust, galvanic zones, and water pooling
- Stage 2: Rust Conversion
- Rust converting primer applied to corroded areas only
- Transformed rust into protective metal phosphate
- Stage 3: Etch Primer Application
- Etch primer applied across entire surface
- Created abrasion-resistant and corrosion-inhibiting barrier
- Stage 4: Waterproofing System
- Ridgecaps sealed with silicone and foam
- Flashings, overlaps, screw heads waterproofed
- Spot repair of corroded holes

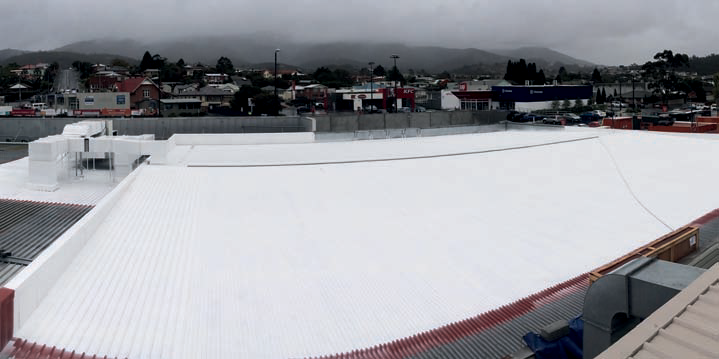

- Stage 5: Thermoshield Ceramic Coating
- Two full coats applied to all surfaces
- Final membrane prevents water, oxygen, and electrolysis contact
Client Outcome
“Thermoshield’s system saved us from an unnecessary and expensive full roof replacement. The corrosion is halted, the roof is sealed, and the thermal performance is a bonus.”
This project is a showcase of Thermoshield’s comprehensive restoration system — extending asset life, improving thermal performance, and delivering long-term savings for commercial and industrial buildings.
